2       概述

在发电和工程机械领域,大型龙门五轴加工中心(双摆头),刀具旋转摆动(如45度)进行大型件自动加工过程中,需要通过手轮控制刀具法向运动(如几何轴Z方向),刀具远离或接近工件,从而实现手轮干预加工过程。

2.1      功能说明

在AUTO或MDA操作方式下,使用手轮在线刀具长度补偿功能,在刀具法向(如G17平面,L1长度方向)控制几何轴偏移运动。例如:手轮移动控制刀具长度方向增加或减少偏移,即Z轴远离或接近工件。



手轮在线刀具长度补偿功能可用于以下情形:

·        循环停止

·        单段

·        程序停止M00/M01

·        进给倍率=0%

·        程序执行过程中



补充说明

通用的DRF功能,在AUTO或MDA操作方式下,可使用手轮移动机床轴。

2.2      应用条件

手轮在线刀具长度补偿功能,须满足以下条件:

·        激活AUTO或MDA操作方式

·        激活TRAORI,或CYCLE800

·        选择刀具坐标系TCS

·        选择DRF功能

·        激活第3几何轴(或第1/2几何轴)的手轮功能

·        选择增量INC1,INC10,或INC100

2.3      软件要求

NC系统软件: > V4.7 SP2 HF1

3       功能配置

3.1      手轮设置

以手轮连接到以太网MCP483(以太网工作方式) X60为例,参数设置如下,

N11350[0] $MN_HANDWHEEL_SEGMENT     [0]= 7

N11351[0] $MN_HANDWHEEL_MODULE       [0]= 1

N11352[0] $MN_HANDWHEEL_INPUT           [0]= 1

3.2      功能参数配置

参数

示例

说明

N19320   $ON_TECHNO_FUNCTION_MASK



Bit 29=1

Technological options

Bit 29: Online override in   tool direction

N11350   $MN_HANDWHEEL_SEGMENT

[0]=   7

Handwheel segment

N11351   $MN_HANDWHEEL_MODULE

[0]=   1

Handwheel module

N11352   $MN_HANDWHEEL_INPUT

[0]=   1

Handwheel input

N52210   FUNCTION_MASK_DISP



Bit 14=1

Bit 15=1

Display   Overlay in tool direction under machine

Bit   14: Display overlay of the DRF under the machine
  Bit 15: Display overlay of the tool ($AA_TOFF) under the machine

MD   52211 $MCS_FUNCTION_MASK_DISP_ZOA

Bit 23=1

Bit 24=1

Function   screen for displaying overview of work offsets

Bit   23: Display TOFF

Bit   24: Display overlay $AA_TOFF

N20620   HANDWH_GEOAX_MAX_INCR_SIZE



10   mm

Limitation   handwheel increment for geometry axes

N20621   HANDWH_ORIAX_MAX_INCR_SIZE

10   deg

Limiting   of handwheel increment for orientation axes

M20622   HANDWH_GEOAX_MAX_INCR_VSIZE

500   mm/min

Path   velocity override

N20623   HANDWH_ORIAX_MAX_INCR_VSIZE

0.1   rpm

Orientation   velocity overlay

N20624   HANDWH_CHAN_STOP_COND

Bit 0=1

Bit 1=1

Bit 2=1

Bit 3=1

Bit 4=1

Bit 5=1

Bit 6=1

Bit 7=1

Bit 8=1

Bit 9=1

Bit 12=1

Definition   of response of handwheel travel, channel-specific

Bit   = 0: Interruption or collection of the displacements entered via the   handwheel.
  Bit = 1: Traversing canceled and no collecting.



Bit   0: Mode group stop
  Bit 1: Mode group stop, axes plus spindle
  Bit 2: NC stop
  Bit 3: NC stop, axes plus spindles
  Bit 4: Feedrate disable
  Bit 5: Feedrate override
  Bit 6: Rapid traverse override
  Bit 7: Feedrate stop, geometry axis



Bit   8: Feed behavior with handwheel
  Bit 8 = 0:

The   maximum feedrate for handwheel travel of geometry axes is that specified in   machine data JOG_AX_VELO for the corresponding machine axis/axes.
  Bit 8 = 1:
  The maximum feedrate for handwheel travel of geometry axes is that specified   in machine data MAX_AX_VELO for the corresponding machine axis/axes.



Bit   9: Override behavior with handwheel

Bit   9 = 0:
  The override is active during handwheel travel of geometry axes.
  Bit 9 = 1:
  During handwheel travel of geometry axes, the override is assumed to be 100%   irrespective of the position of the override switch.
  Exception: override 0, which is always active.



Bit   12: NC start

 Bit 12 = 0:
  NC start has no effect on handwheel travel.
  Bit 12 = 1:
  The previously collected paths are rejected at NC start.



N21190   $MC_TOFF_MODE

Bit 1=1

Bit 2=1

Bit 3=1

Bit 4=1

Bit 5=1

Bit 6=1

Bit 7=1

Bit 9=1

Mode   of correction in tool direction

Bit   0: Behavior of $AA_TOFF in case of a RESET

0:   $AA_TOFF is deselected on a RESET

1:   $AA_TOFF is retained beyond a RESET



Bit   1: Effect of the value assigned to the 1st component of $AA_TOFF[ ]

0:   Absolute value

1:   Incremental value (integrator)



Bit   2: Effect of the value assigned to the 2nd component of $AA_TOFF[ ]

0:   Absolute value

1:   Incremental value (integrator)



Bit   3: Effect of the value assigned to the 3rd component of $AA_TOFF[ ]

0:   Absolute value

1:   Incremental value (integrator)

Bit   4: Response of $AA_TOFF motion on NC stop

0:   Motion is interrupted on NC stop

1:   Motion remains active on NC stop



Bit   5: Response of $AA_TOFF motion on RESET and end of program

0:   Motion is interrupted on RESET or end of program

1:   Motion remains active on RESET or end of program



Bit   6: Effect of the setting data $SC_TOFF_LIMIT_MINUS

0:   The lower limit $SC_TOFF_LIMIT_MINUS has no effect. -$SC_TOFF_LIMIT is taken   as the lower limit.

1:   The lower limit $SC_TOFF_LIMIT_MINUS is effective.



Bit   7: Blockwise suppression of TOFF with SUPA

0:   TOFF is not suppressed block-by-block with SUPA.

1:   TOFF is suppressed block-by-block with SUPA.



Bit   8: Response of the TOFF handwheel travel at TOFF_LIMIT / TOFF_LIMIT_MINUS

0:   Interruption, that means collection of the distances preset via the handwheel

1:   Abortion of the traversing movement, that means no collection



Bit   9: $AA_TOFF handwheel override possible without activation by TOFFON.

0:   $AA_TOFF handwheel override possible only after activation of the $AA_TOFF   function by TOFFON.

1:   $AA_TOFF handwheel override possible without activation of the $AA_TOFF   function by TOFFON.

N21194   $MC_TOFF_VELO

[0]   =100 mm/min

[1]   =100 mm/min

[2]   =100 mm/min

Feedrate   for online correction in tool direction

N21196   $MC_TOFF_ACCEL

[0]   =100 mm/s^2

[1]   =100 mm/s^2

[2]   =100 mm/s^2

Acceleration   for online correction in tool direction

N42970  $SC_TOFF_LIMIT

[0]   =10 mm

[1]   =10 mm

[2]   =10 mm

Upper   limit of correction value via $AA_TOFF

N42972  $SC_TOFF_LIMIT_MINUS

[0]   =-10 mm

[1]   =-10 mm

[2]   =-10 mm

Lower   limit of the offset value $AA_TOFF

3.3      在刀具定向中手动运行

3.3.1     配置TCS(刀具坐标系)

激活FB1输入参数“MCP_IF_TCS" MCP483R11键用作TCS(刀具坐标系)刀具定向运动选择键.


FB1输入参数MCP_IF_TCS

=0FC19不检查MCP483按键R11

=1FC19检查按键 MCP483R11;通过按键 R11 可切换至在刀具定向中手动运行

3.3.2     手轮在线刀具长度补偿

FB10输入参数“MCP_IF_TCS”=1时,通过键R11切换至在刀具定向中手动运行。按下键R11led亮)时,FC19设置DB21.DBB392 = 3FC19控制固定选择键R3(即几何轴Z),此时

1)    +/-方向键作用于各个通道的第3个几何轴ZG17平面)

2)    AUTO下,激活DRF功能,手持单元选择第3 几何轴ZG17平面)时,通过手轮控制Z轴沿刀具法向运动远离或接近工件

·        补充说明

不使用FC19,单独设置DB21.DBB392 =3(通道1),激活在刀具定向中手动运行功能。

4       手轮在线刀具长度补偿功能应用

本文档以5轴龙门加工中心(双摆头)为例,说明手轮在线刀具长度补偿功能应用。

4.1      5轴双摆头设置

4.1.1     轴配置

N10000 $MN_AXCONF_MACHAX_NAME_TAB[0]="MX1"     ; 机床轴名

N10000 $MN_AXCONF_MACHAX_NAME_TAB[1]="MY1"

N10000 $MN_AXCONF_MACHAX_NAME_TAB[2]="MZ1"

N10000 $MN_AXCONF_MACHAX_NAME_TAB[3]="MA1"

N10000 $MN_AXCONF_MACHAX_NAME_TAB[4]="MC1"

N10000 $MN_AXCONF_MACHAX_NAME_TAB[5]="MSP1"



N20050 $MC_AXCONF_GEOAX_ASSIGN_TAB[0]=1        ; 分配几何轴到通道轴

N20050 $MC_AXCONF_GEOAX_ASSIGN_TAB[1]=2

N20050 $MC_AXCONF_GEOAX_ASSIGN_TAB[2]=3



N20060 $MC_AXCONF_GEOAX_NAME_TAB[0]="X"        ; 通道中的几何轴名称

N20060 $MC_AXCONF_GEOAX_NAME_TAB[1]="Y"

N20060 $MC_AXCONF_GEOAX_NAME_TAB[2]="Z"



N20070 $MC_AXCONF_MACHAX_USED[0]=1             ; 通道轴对应的机床轴

N20070 $MC_AXCONF_MACHAX_USED[1]=2

N20070 $MC_AXCONF_MACHAX_USED[2]=3

N20070 $MC_AXCONF_MACHAX_USED[3]=4

N20070 $MC_AXCONF_MACHAX_USED[4]=5

N20070 $MC_AXCONF_MACHAX_USED[5]=6



N20080 $MC_AXCONF_CHANAX_NAME_TAB[0]="XX"      ; 通道轴名称

N20080 $MC_AXCONF_CHANAX_NAME_TAB[1]="YY"

N20080 $MC_AXCONF_CHANAX_NAME_TAB[2]="ZZ"

N20080 $MC_AXCONF_CHANAX_NAME_TAB[3]="A"

N20080 $MC_AXCONF_CHANAX_NAME_TAB[4]="C"

N20080 $MC_AXCONF_CHANAX_NAME_TAB[5]="SP1"

4.1.2     5轴变换

N24100 $MC_TRAFO_TYPE_1=24               ; Generic transformation Tool type



N24110 $MC_TRAFO_AXES_IN_1[0]=1          ; X1 linear axis in

N24110 $MC_TRAFO_AXES_IN_1[1]=2          ; Y1 linear axis in

N24110 $MC_TRAFO_AXES_IN_1[2]=3          ; Z1 linear axis in

N24110 $MC_TRAFO_AXES_IN_1[3]=5          ; C1 first rotary axis.

N24110 $MC_TRAFO_AXES_IN_1[4]=4          ; A1 second rotary axis tool orientation



N24120 $MC_TRAFO_GEOAX_ASSIGN_TAB_1[0]=1 ; axis name X after turn on TRAORI

N24120 $MC_TRAFO_GEOAX_ASSIGN_TAB_1[1]=2 ; axis name Y after turn on TRAORI

N24120 $MC_TRAFO_GEOAX_ASSIGN_TAB_1[2]=3 ; axis name Z after turn on TRAORI



N24570 $MC_TRAFO5_AXIS1_1[0]=0

N24570 $MC_TRAFO5_AXIS1_1[1]=0

N24570 $MC_TRAFO5_AXIS1_1[2]=1           ; 1st rotary axis by Z, tool move



N24572 $MC_TRAFO5_AXIS2_1[0]=1           ; 2nd rotary axis by A, tool move

N24572 $MC_TRAFO5_AXIS2_1[1]=0

N24572 $MC_TRAFO5_AXIS2_1[2]=0



N24574 $MC_TRAFO5_BASE_ORIENT_1[0]=0

N24574 $MC_TRAFO5_BASE_ORIENT_1[1]=0

N24574 $MC_TRAFO5_BASE_ORIENT_1[2]=1     ; Tool on Z direction

4.1.3     Tool carrierCYCLE800





4.2      3+2刀具定向(CYCLE800 - 手轮在线刀具长度补偿功能

4.2.1     测试程序

N10 TRAFOOF

N20 CYCLE800()

; N30 TOFFON

N30 M0

N40 SUPA G0 X0 Y0 Z0 C0 A0

N50 M0

N60 CYCLE800(0,"TC1",100000,192,0,0,0,0,90,0,0,0,0,-1,100,101)



N70 M0

N80 G1 Z100 F1000

N90 M0

N100 TRAFOOF

N110 CYCLE800()

N120 M30

4.2.2     3+2刀具定向 - 手轮在线刀具长度补偿功能

1.    执行N60,刀具绕X轴旋转90

N60 CYCLE800(0,"TC1",100000,192,0,0,0,0,90,0,0,0,0,-1,100,101)




2.    按下键R11led亮)时, FC19控制固定选择键R3(即几何轴Z


3.    JOG方式下,+/-方向键作用于3个几何轴Z,控制几何轴Z轴沿刀具法向运动远离或接近工件

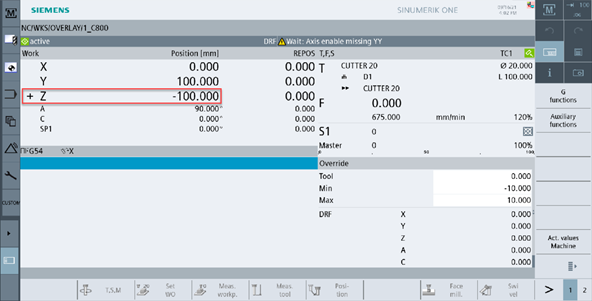

按压+方向键,几何轴Z正向移动,


按压+方向键,实际机床轴MY1负向移动远离工件,



4.    AUTO下,激活DRF功能,程序执行过程中,或M0,或激活循环停止等,手持单元选择第3 几何轴Z,通过手轮控制Z轴沿刀具法向运动远离或接近工件

手轮顺时针旋转,几何轴Z正向移动,手轮在线刀具长度补偿0.123mm



手轮顺时针旋转,实际机床轴MY1负向移动远离工件,手轮在线刀具长度补偿0.123mm

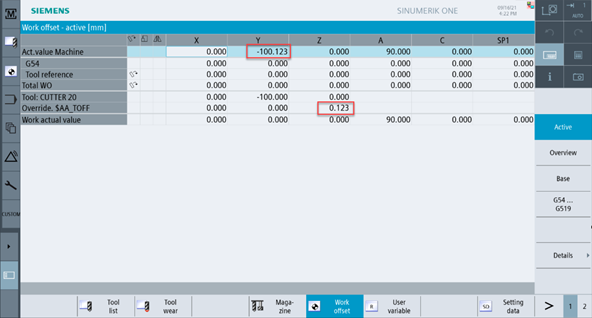

工件零点偏移查看手轮在线刀具长度补偿,几何轴Z偏移0.123mm,实际机床轴MY1偏移-0123mm



4.3      五轴刀具定向(TRAORI - 手轮在线刀具长度补偿功能

4.3.1     测试程序

N10 CYCLE800()

 ; N25 TOFFON

N20 SUPA G0 X0 Y0 Z0 C0 A0

N30 M0

N40 T="CUTTER 20"

N50 M6

N60 D1

N70 M0

N80 TRAORI

N90 ORIWKS

N100 G0 A90

N110  TOFRAME

N120 M0

N130 G1 Z100 F1000

N140 M0

N150 TRAFOOF

N160 M30

4.3.2     五轴刀具定向(TRAORI - 手轮在线刀具长度补偿功能

1.    执行N100N110,刀具绕X轴旋转90

N100 G0 A90

N110  TOFRAME



2.    按下键R11led亮)时, FC19控制固定选择键R3(即几何轴Z


3.    AUTO下,激活DRF功能,程序执行过程中,或M0,或激活循环停止等,手持单元选择第3 几何轴Z,通过手轮控制Z轴沿刀具法向运动远离或接近工件

手轮顺时针旋转,几何轴Z正向移动,手轮在线刀具长度补偿0.123mm



手轮顺时针旋转,实际机床轴MY1负向移动远离工件,手轮在线刀具长度补偿0.123mm



工件零点偏移查看手轮在线刀具长度补偿,几何轴Z偏移0.123mm,实际机床轴MY1偏移-0123mm


5       附录

5.1      接口信号

5.1.1     DB21.DBB392

·        几何轴X,Y或Z均可实现handwheel overlay 运动(DB21.DBB392 =3时)
